Introduction

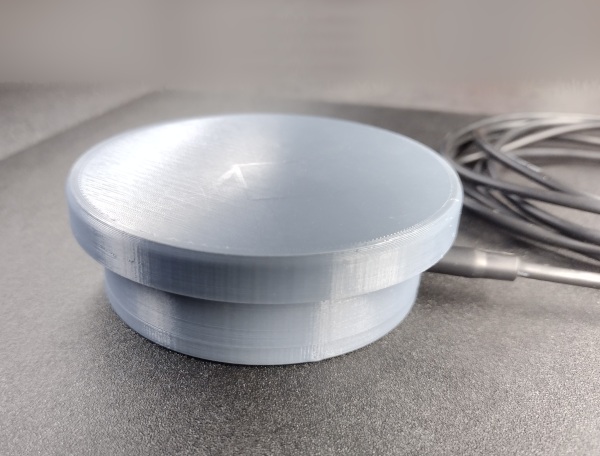

This is a 3D printed switch for many uses, including controlling a computer when used with a switch adapter and screen scanning software.

There are three main sections and one optional section within this documentation:

• Mechanical - Covers 3D printing all the parts, as well as sourcing and installing fasteners.
• Electrical - Covers the custom circuit board and the components that go on it.
• Final Assembly - Explains how to fit all of the parts together into the completed switch.
• Custom Bases - Gives information on creating custom mounting bases so that the switch can be adapted and mounted as needed.

The electrical and mechanical sections must be completed before the final assembly can be attempted.

Bill of Materials

Obtaining the parts and tools in this BOM should provide everything needed to make and assemble the push button switch.

• 4 x 1/4 Inch Heavy Rubber Band
• 1 x Audio Jack
• 20 m x PLA or PETG 3D printer filament
• 12 x M2 Captive Nut
• 1 x M2 Washer
• 3 x M2x12mm Socket Head Screw
• 1 x M2x16 Socket Head Screw
• 6 x M2x6mm Socket Head Screw
• 3 x M2x8mm Socket Head Screw
• 1 x M3 Square Nut
• 1 x M3x6mm Socket Head Screw
• 1 x Microswitch
• 1 x Mono Audio Cable
• 1 x Printed Circuit Board
• 1 x Solder

• 1 x 1.5mm Hex Wrench
• 1 x 2.5mm Hex Wrench
• 1 x 3D Printer
• 1 x soldering Iron
• 1 x Tweezers

Licenses

• Documentation: Attribution-ShareAlike 4.0 International
• Software: Apache License, Version 2.0
• Hardware: CERN Open Hardware Licence Version 2 - Permissive
